Curtain Wall Detail Pack

Curtain Wall Detail Pack

Price range: £18.00 through £33.00 + VAT

Detail Packs contain a selection of useful details on a similar theme. They are put together for easy downloading for members, and for non members they are offered at a reduced price. There are two types of pack:

1. CAD only pack, available to purchase for non members, or to download free for any LITE members.

2. CAD, SketchUp, Revit Pack, available to purchase for non members, or to download for free to any PRO members.

Please Note: These files are large and will require a good internet connection to download.

Original price was: £55.00.Current price is: £33.00. + VAT
Original price was: £30.00.Current price is: £18.00. + VAT
Want a discount? Become a member by purchasing Annual Membership Subscription – Pro Plan!
Want a discount? Become a member by purchasing Annual Membership Subscription – Lite Plan!
somdn_product_page

Category:

Included in this Detail Pack

  • Curtain wall glazing typical profiles
  • Curtain wall glazing head & base detail – masonry cavity wall
  • Curtain wall glazing jamb detail – masonry cavity wall
  • Curtain wall glazing head detail – cavity wall with SFS internal leaf
  • Curtain wall glazing base detail – concrete upper floor
  • Curtain wall glazing continuing past intermediate floor – concrete upper floor
  • Curtain wall glazing continuing past intermediate floor – timber floor
  • Curtain wall glazing level threshold base detail
  • Curtain wall glazing ground floor base detail with upstand
  • Curtain wall glazing external blind detail – masonry cavity wall

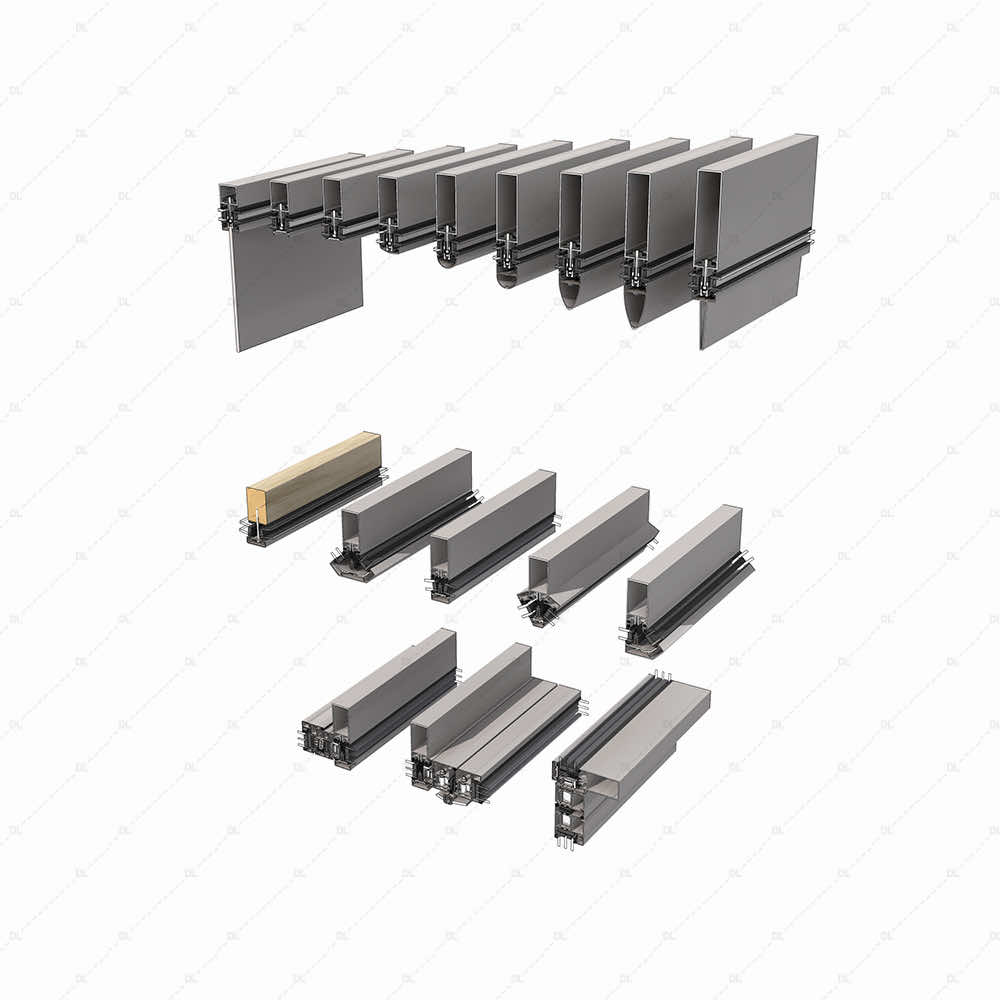

DL217 - Curtain Wall Glazing Typical Profiles - Image 2

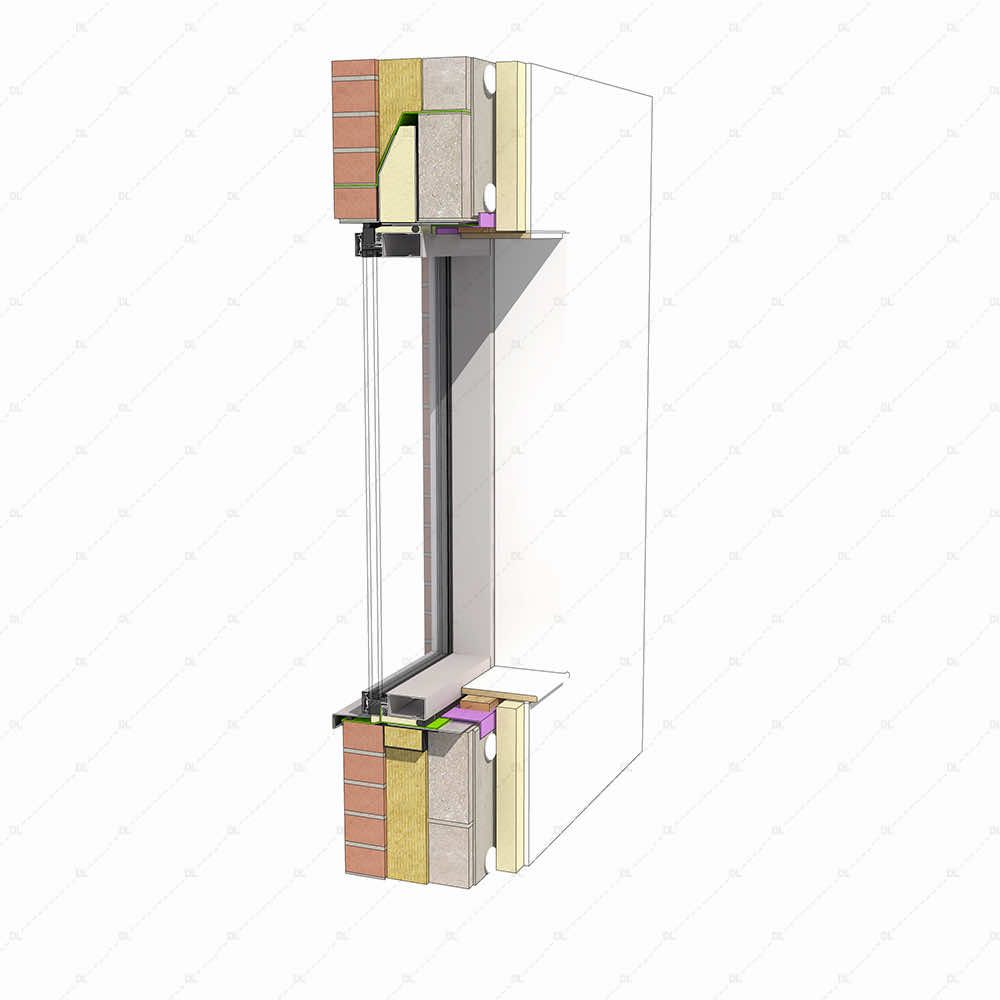

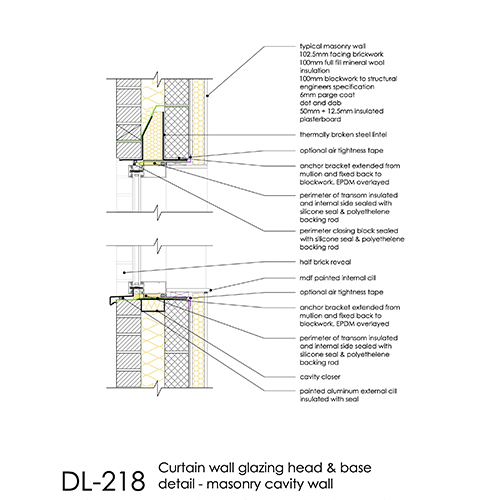

DL218 curtain wall glazing head and base detail 2d
DL218 - Curtain Wall Glazing Head and Base Detail - Image 2

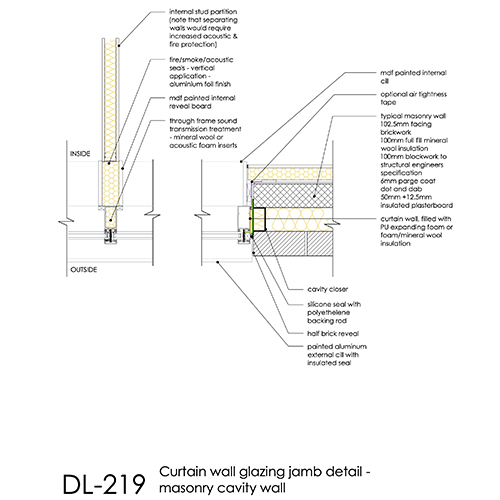

DL219 Curtain wall glazing jamb detail 2d

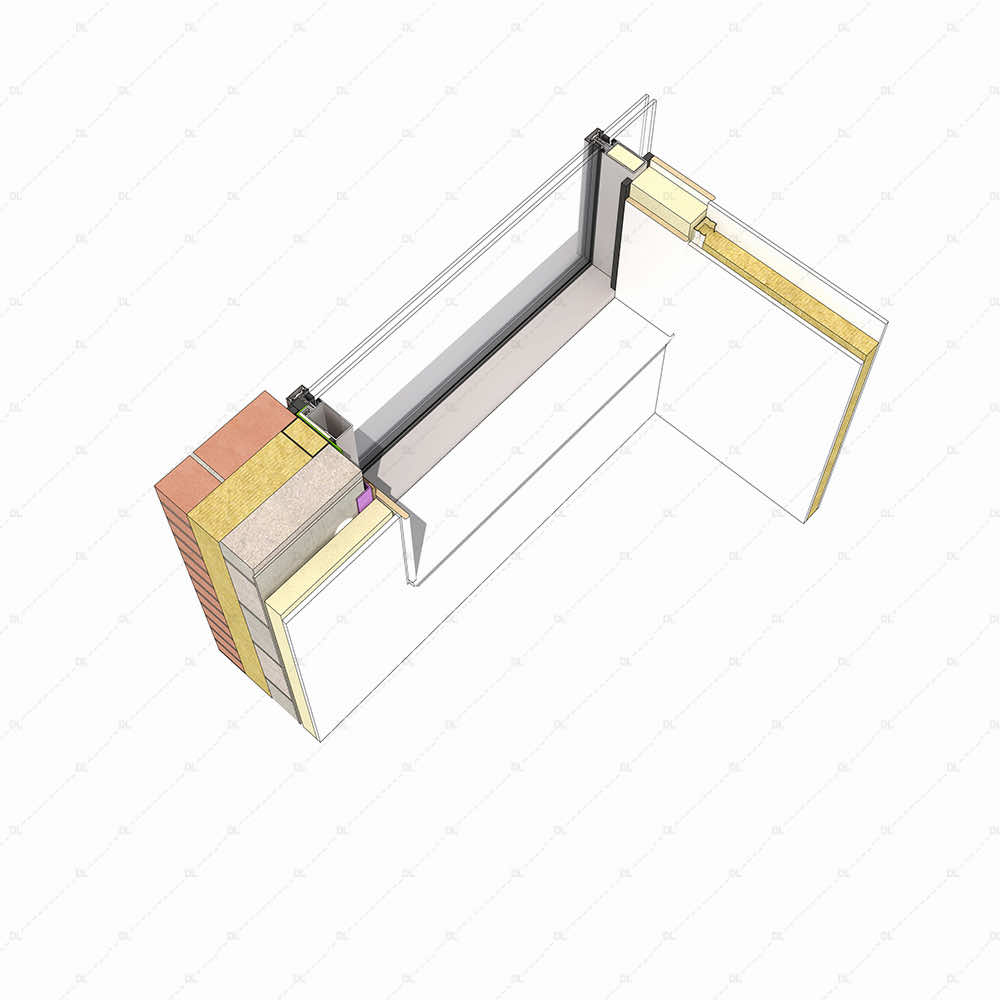

DL219 Curtain wall glazing jamb detail

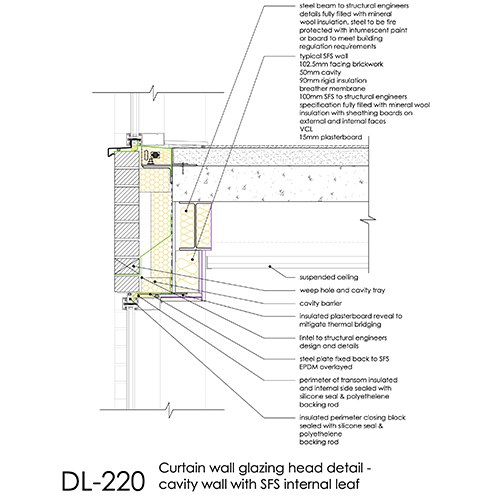

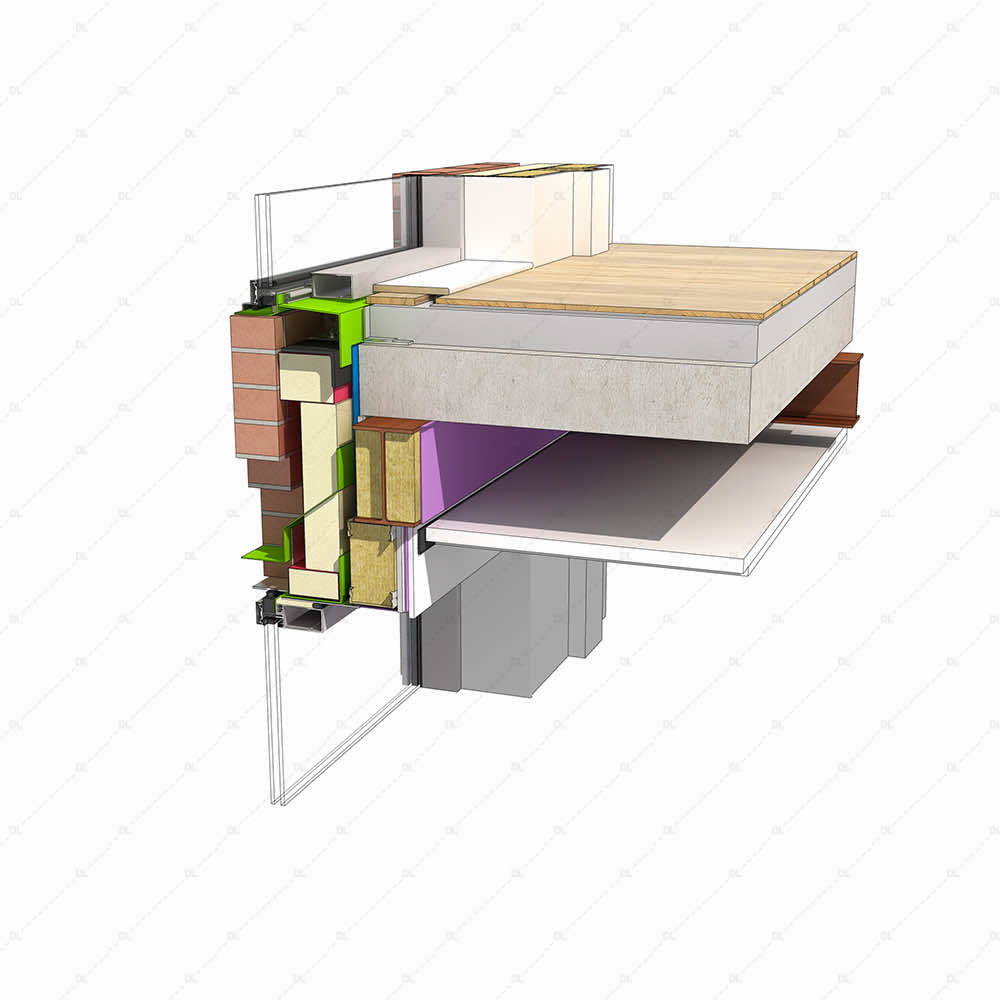

DL220 curtain wall glazing head detail 2d
DL220 - Curtain Wall Glazing Head Detail with SFS - Image 2

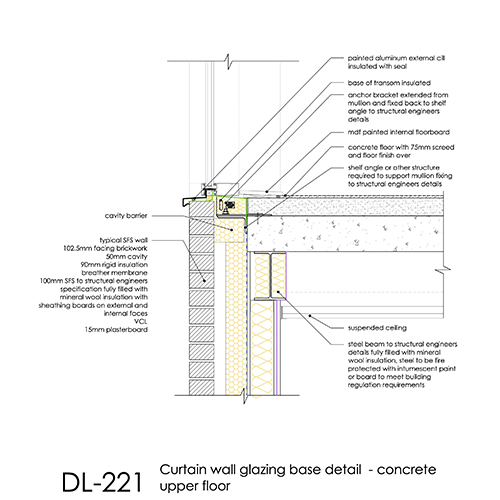

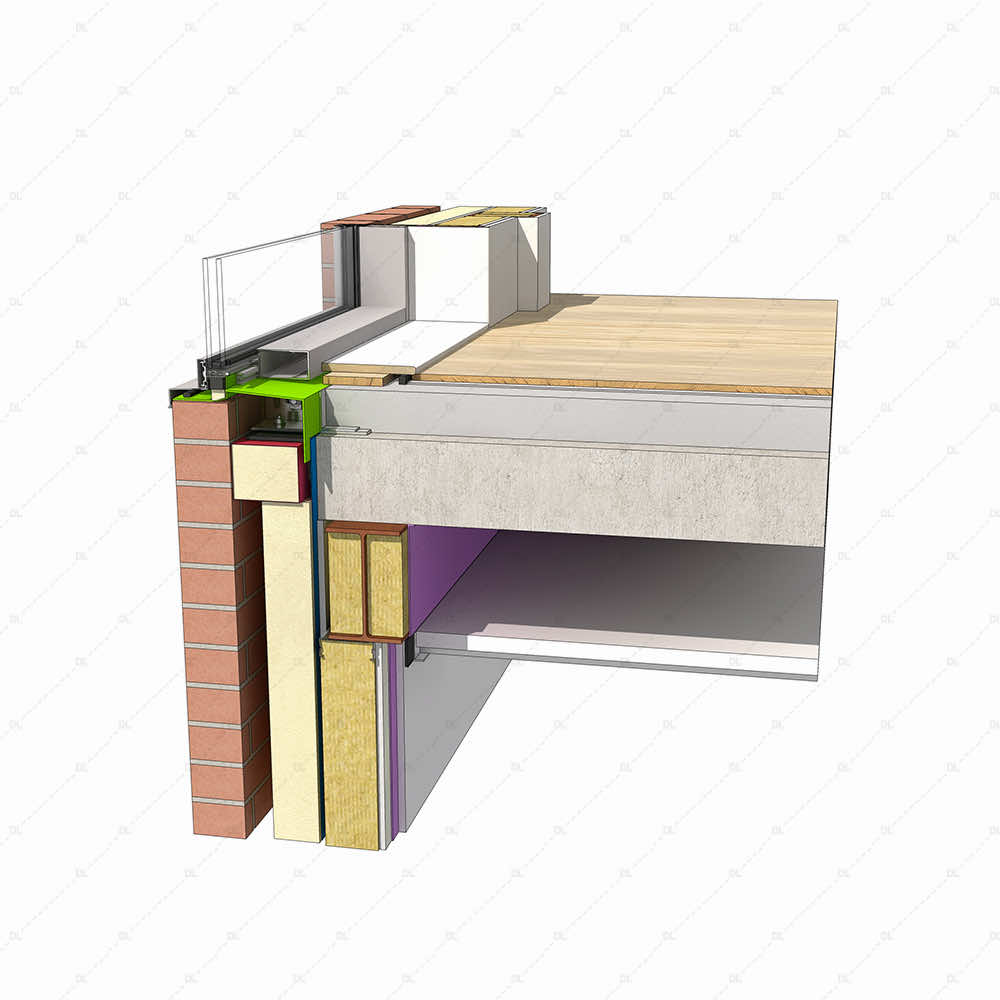

DL221 curtain wall glazing base detail 2d
DL221 - Curtain Wall Glazing Base Detail - Image 2

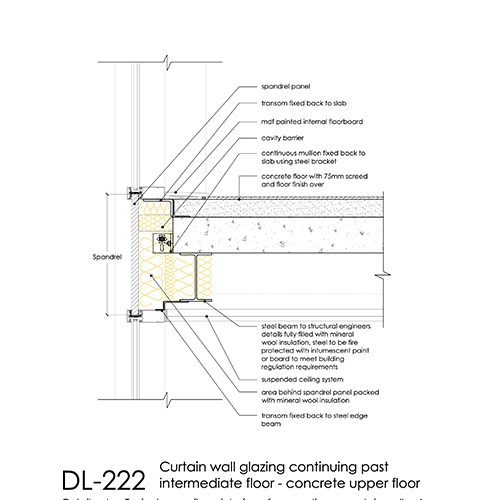

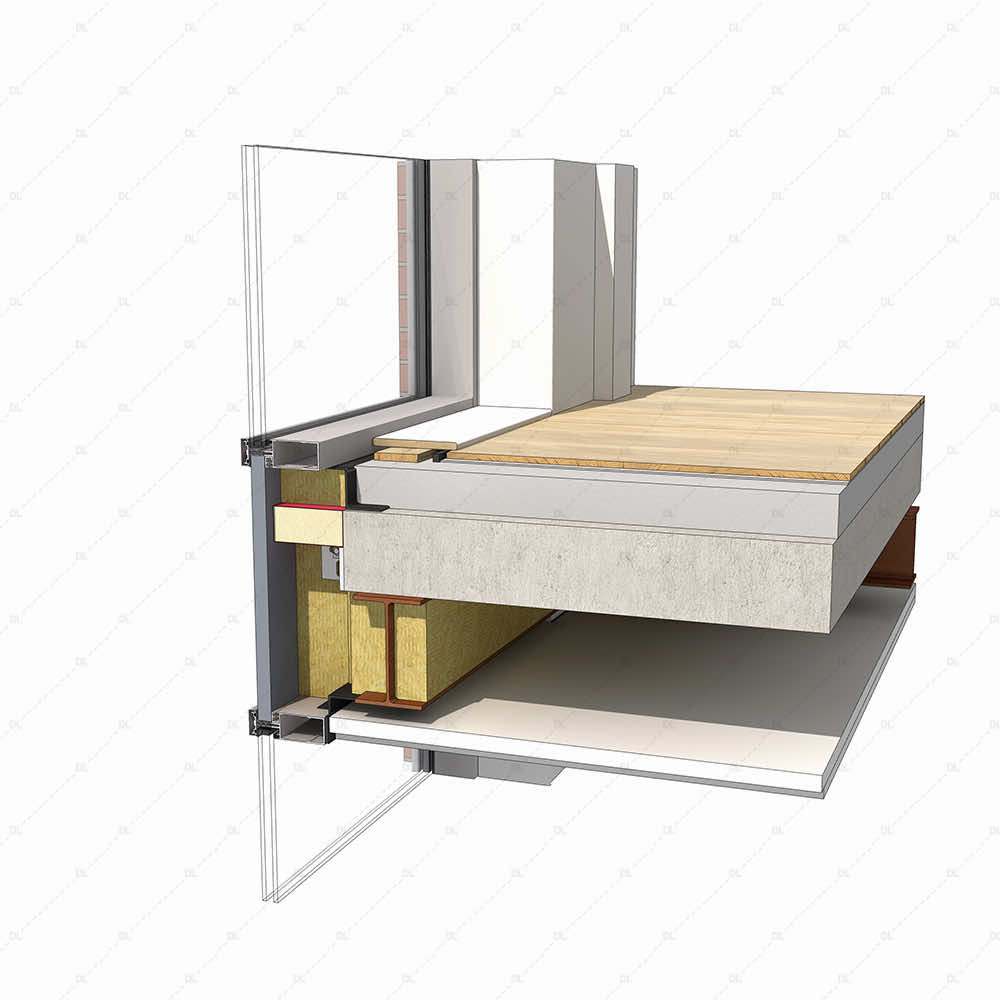

DL222 curtain wall glazing intermediate floor detail2d
DL222 curtain wall glazing intermediate floor detail

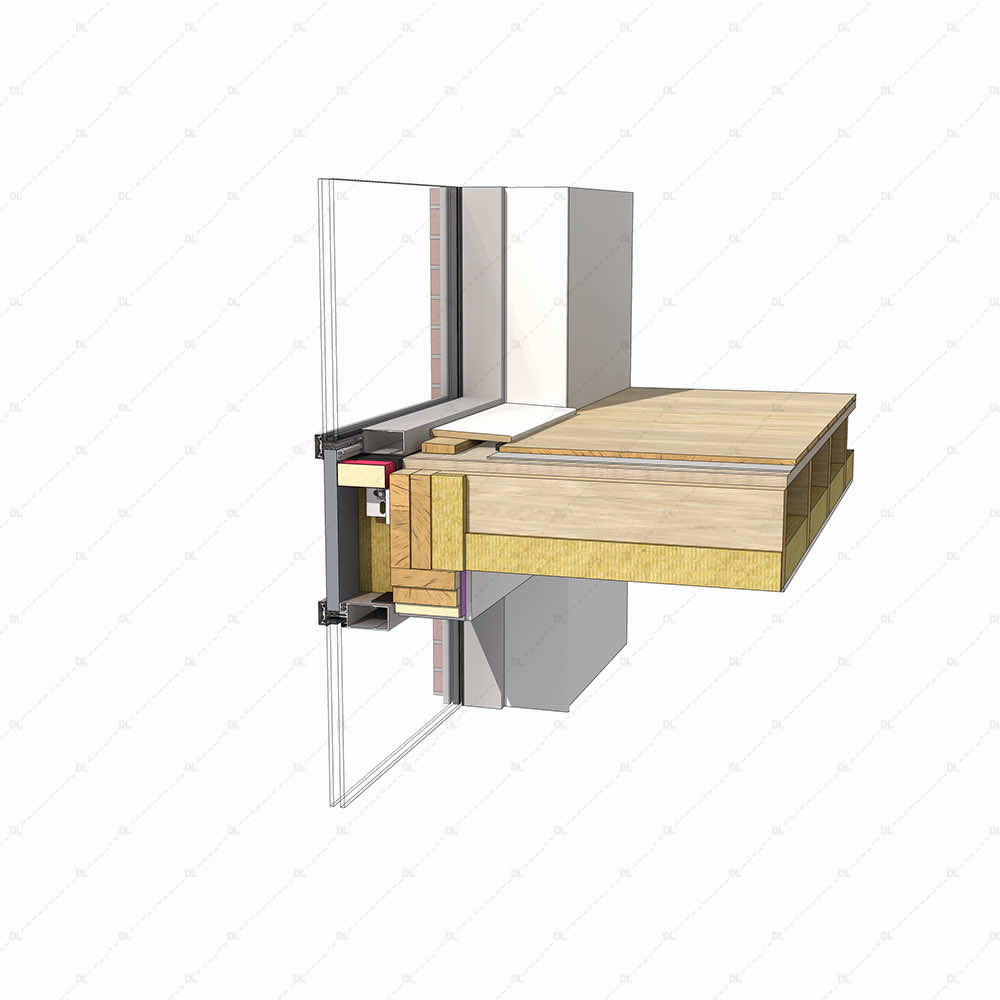

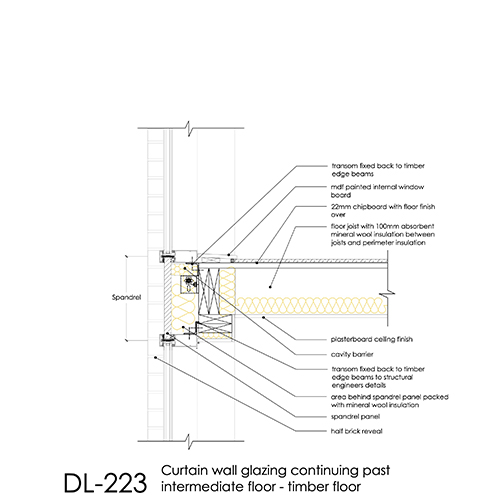

DL223 curtain wall glazing timber floor detail 2d
DL223 - Curtain Wall Glazing Intermediate Floor Detail Timber - Image 2

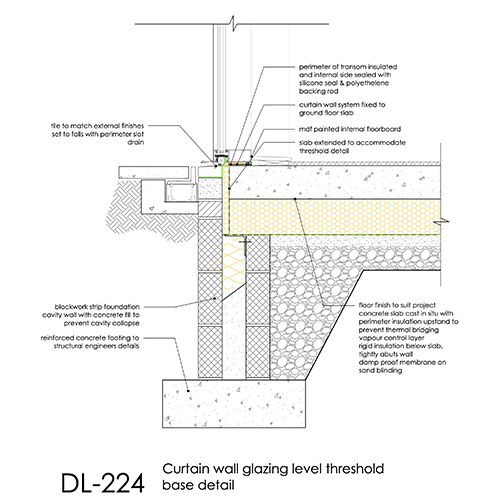

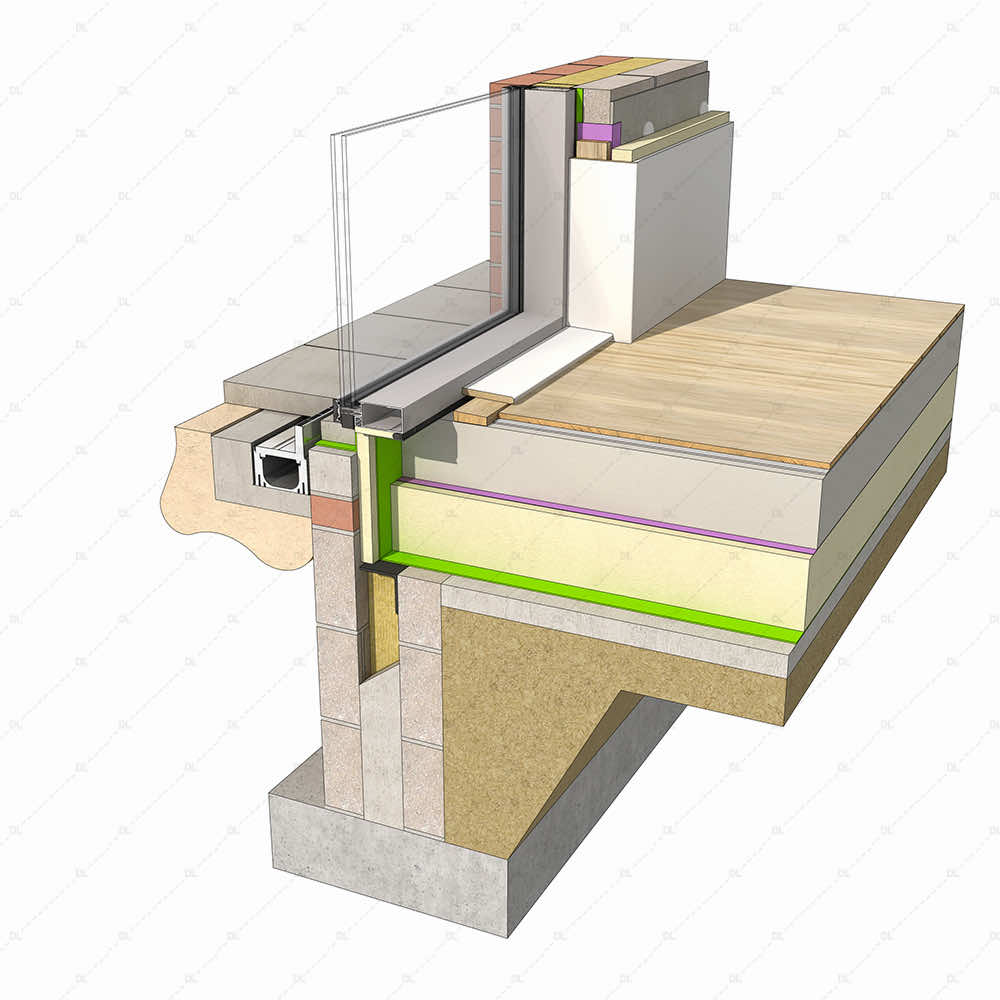

DL224 curtain wall glazing level threshold detail 2d
DL224 - Curtain Wall Glazing Level Threshold Base Detail - Image 2

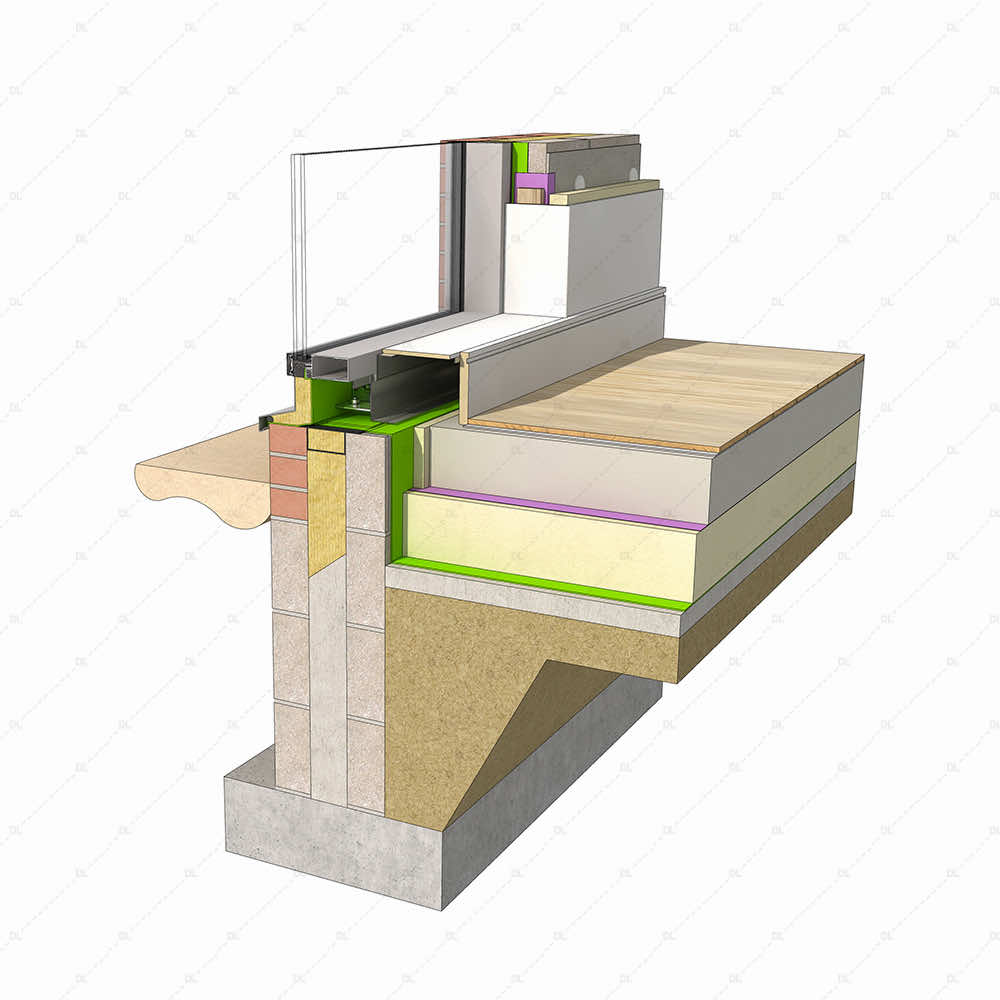

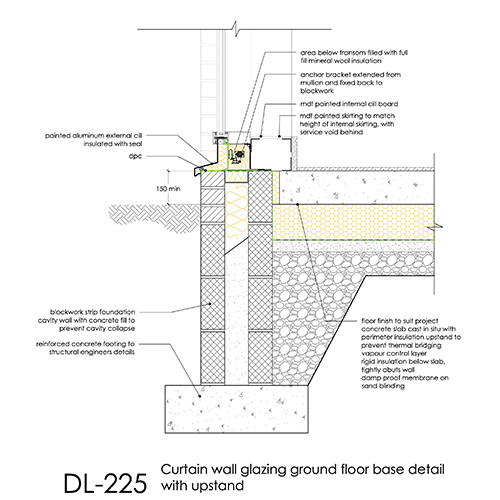

DL225 curtain wall glazing base detail with upstand 2d
DL225 - Curtain Wall Glazing Ground Floor Base Detail - Image 2

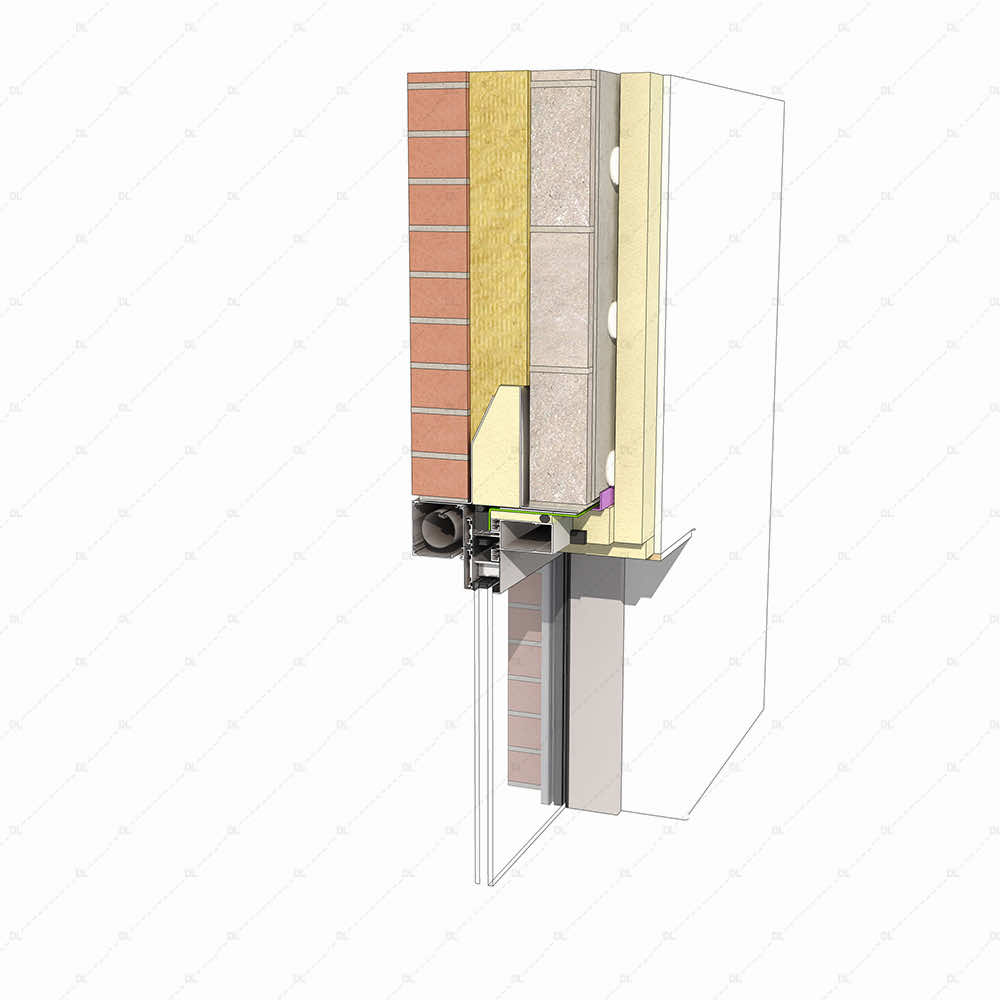

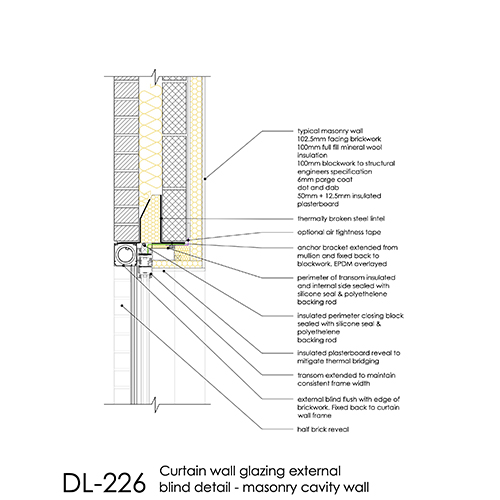

DL226 curtain wall glazing external blind detail 2d
DL226 - Curtain Wall Glazing External Blind Detail - Image 2
