DL159 – Window Section with Deeper Reveal Wide Cavity

Price range: £4.00 through £8.00 + VAT

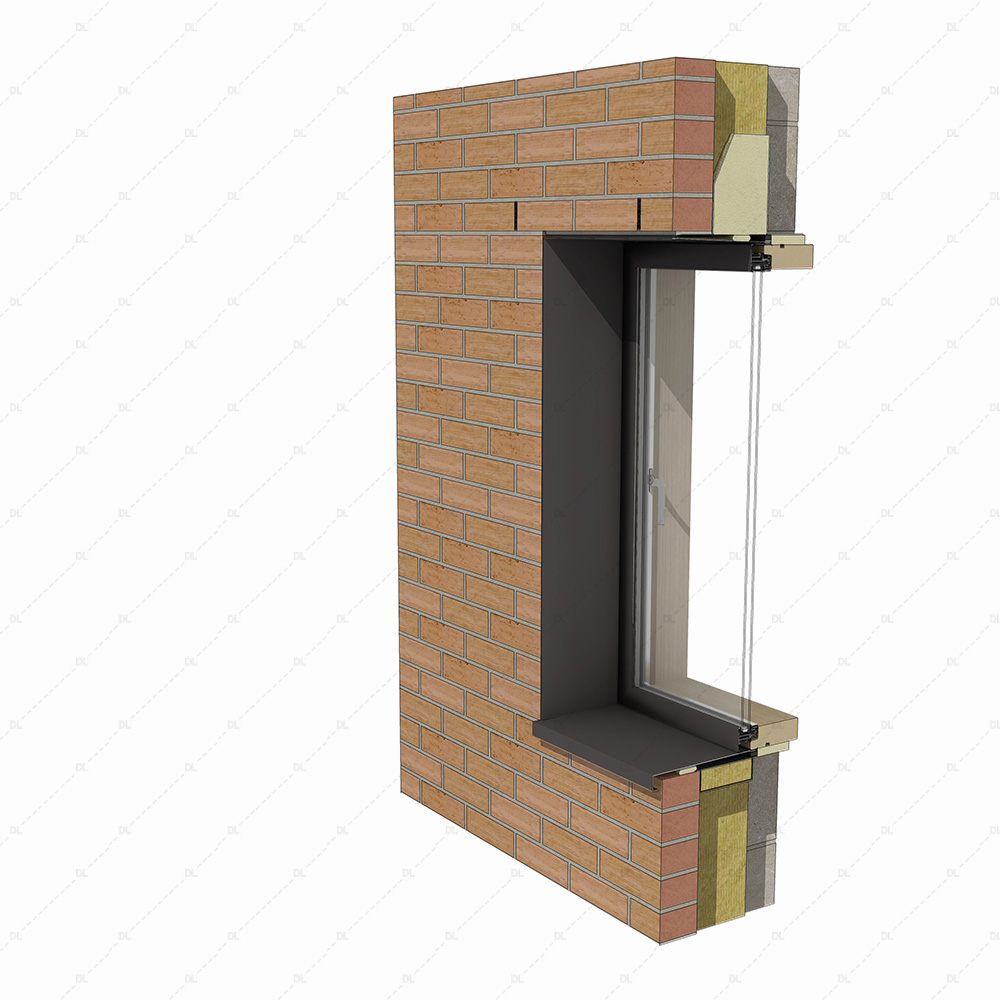

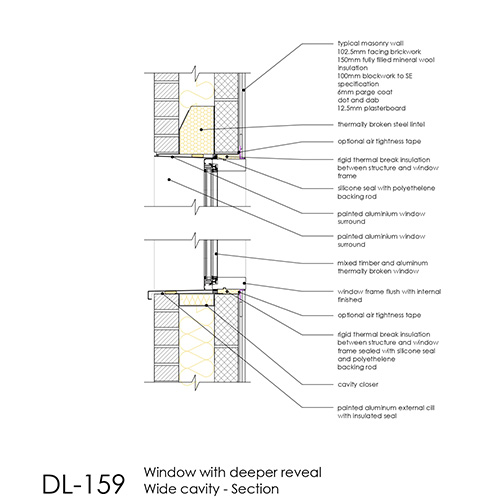

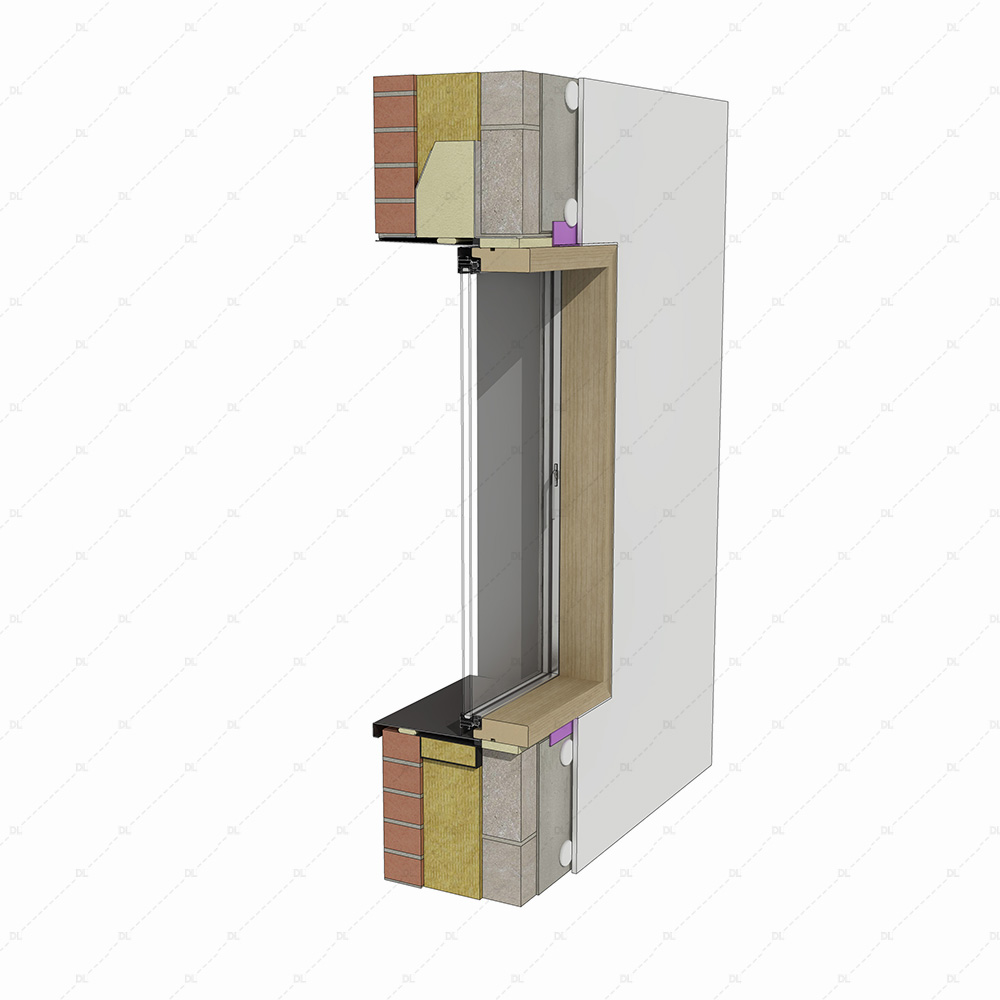

Window Section Detail with Deeper Reveal Wide Cavity. Detail shows typical mixed timber aluminium window in a deep external reveal position.

Features of this detail: timber aluminium window, masonry cavity wall, window head, window sill, lintel, facing brickwork, 150mm cavity, wide cavity

Choose an option

DL159 - Window Section with Deeper Reveal Wide Cavity – LITE - Cad File

£4.00 + VAT

DL159 - Window Section with Deeper Reveal Wide Cavity – PRO - All Files

£8.00 + VAT

Download Type

Clear

Want a discount? Become a member by purchasing Annual Membership Subscription – Lite Plan!

Want a discount? Become a member by purchasing Annual Membership Subscription – Pro Plan or Monthly Membership Subscription!

This product can be downloaded for free by members. To download this product, sign up by purchasing Monthly Membership Subscription, Annual Membership Subscription – Pro Plan or Annual Membership Subscription – Lite Plan.

Categories: Alu-clad, Brick, External Finish, Full Fill, Masonry, Masonry Wall, Walls, Window Material, Windows and Doors Tags: Masonry, New build
