Flat and Pitched Roof Details

Following some recent member requests, we are expanding our collection of pitched roof and eaves junctions with a particular focus on warm roofs and ceiling-level insulation. This new set of details supports a range of common and advanced construction scenarios, from traditional masonry cavity walls to contemporary timber frame systems, and includes solutions for both ventilated and airtight build-ups.

It includes a variety of eaves configurations – flush, exposed, and corbelled – along with both standard and bobtail truss options to maintain full insulation at ceiling level. We’ve also included loft boarding details for storage-ready roofspaces, rooflight shaft junctions, and metal standing seam roof systems, addressing both functional and aesthetic performance.

Included in this detail set:

  • Timber frame wall with timber cladding to flat roof parapet
  • Flush eaves to masonry cavity wall – insulation at ceiling level
  • Flush eaves to masonry cavity wall – bobtail truss with insulation at ceiling level
  • Corbelled eaves to masonry cavity wall – bobtail truss with insulation at ceiling level
  • Exposed eaves to masonry cavity wall – insulation at ceiling level
  • Exposed eaves to masonry cavity wall – bobtail truss with insulation at ceiling level
  • Timber clad timber frame eaves detail – insulation at ceiling
  • Timber clad timber frame eaves detail with hidden gutter – insulation at ceiling
  • Insulated rooflight shaft – pitched roof with insulation at ceiling level
  • Raised loft boarding system – pitched roof with insulation at ceiling level
  • Raised loft boarding system loft hatch & ladder – insulation at ceiling level
  • Standing seam insulated metal roof system eaves detail with box gutter
  • Standing seam insulated metal roof system eaves detail

These details are designed to be easily adapted for different construction types and performance targets.

Login to your Detail Library membership to download the details in both 2D CAD and Revit and 3D SketchUp formats – ready to integrate directly into your projects.

We hope you find them useful!

New Details

DL456 – 150mm Masonry Cavity Wall to Flat Roof Parapet

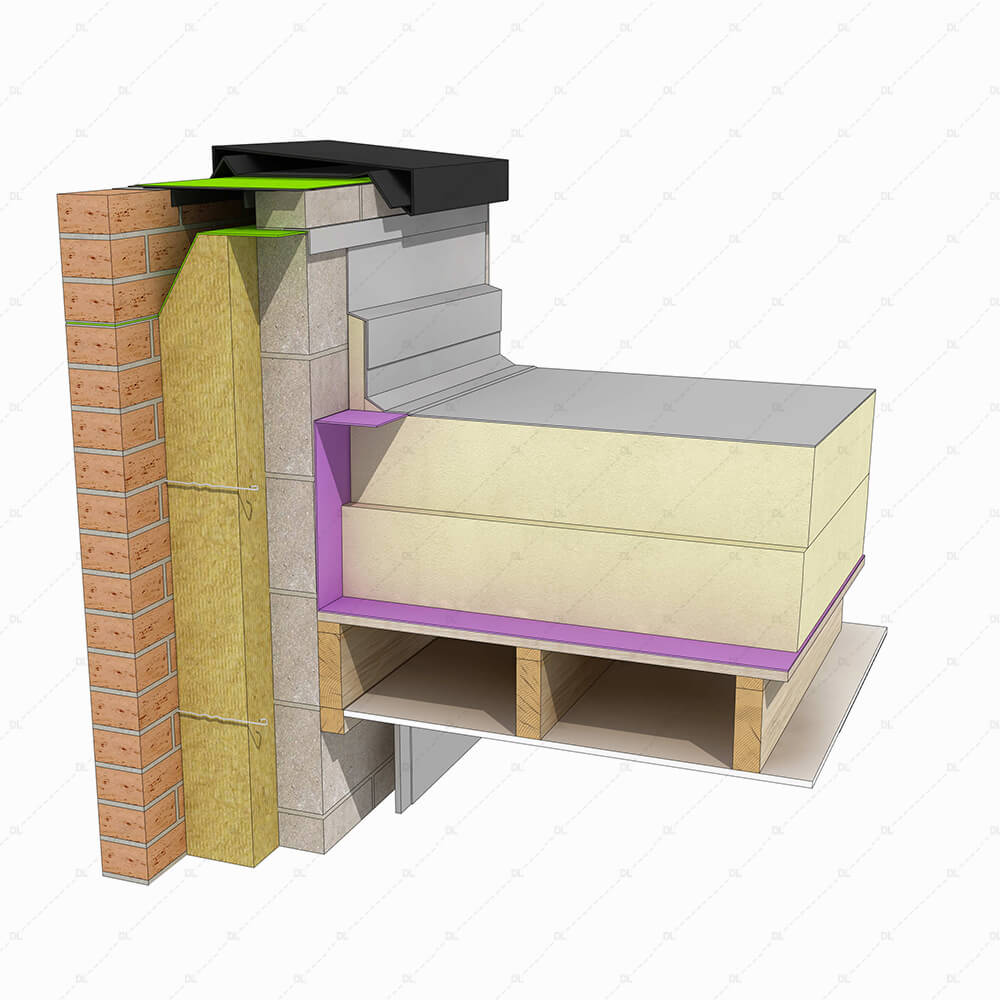

DL456 Masonry cavity wall to flat roof parapet

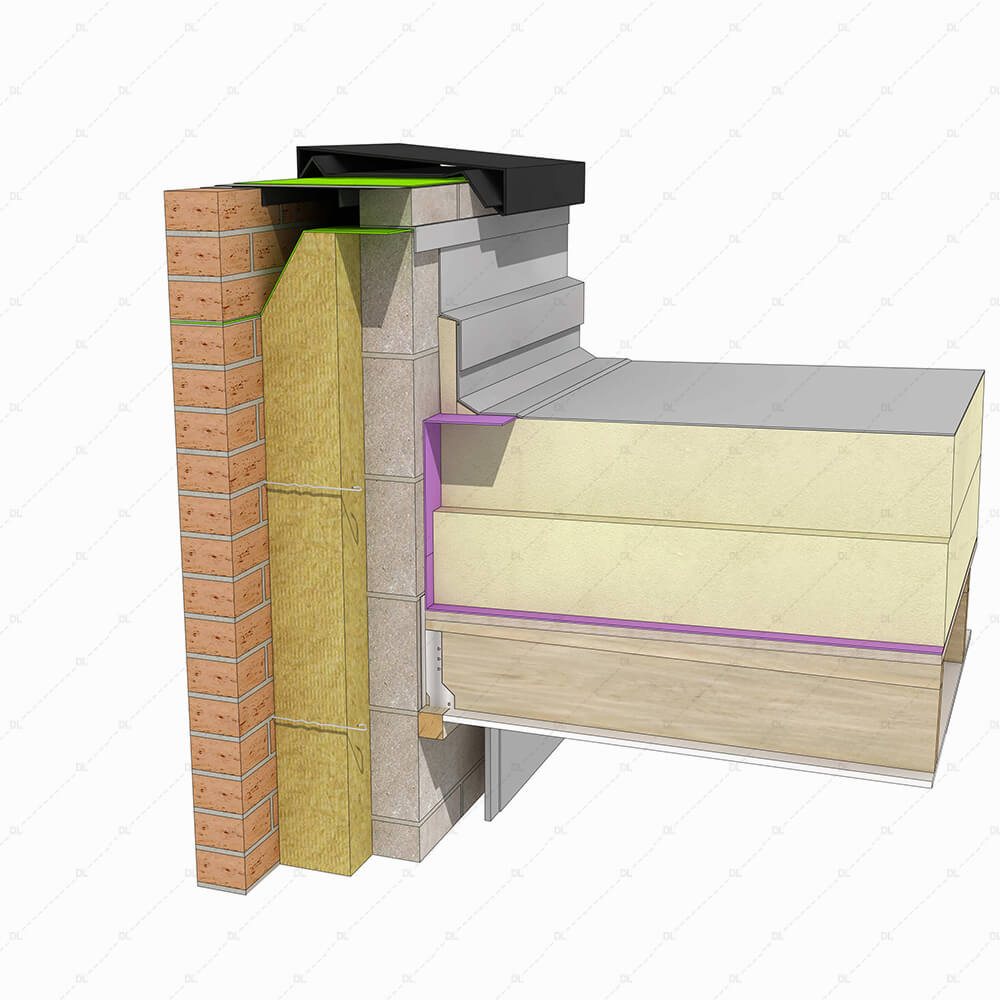

DL457 – 150mm Masonry Cavity Wall to Flat Roof Parapet – Joists Perpendicular to Wall

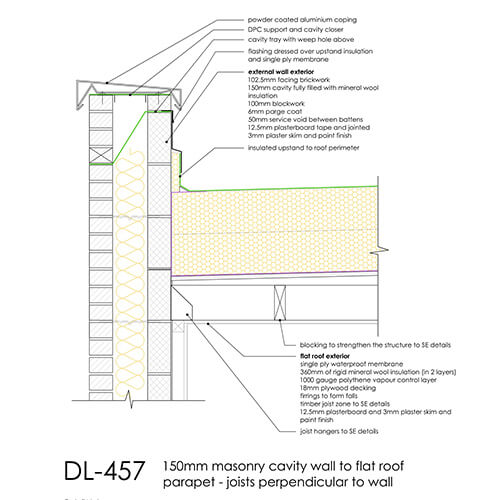

DL457 Masonry cavity wall to flat roof parapet - joists perpendicular
DL457 – 150mm Masonry Cavity Wall to Flat Roof Parapet – Joists Perpendicular to Wall - Image 2

DL458 – Timber Frame Wall With Timber Cladding to Flat Roof Parapet

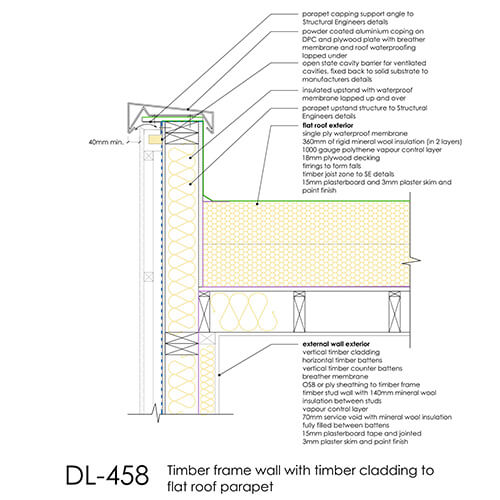

DL458 Timber frame wall to flat roof parapet
DL458 – Timber Frame Wall With Timber Cladding to Flat Roof Parapet - Image 2

DL459 – Flush Eaves to Masonry Cavity Wall – Insulation at Ceiling Level

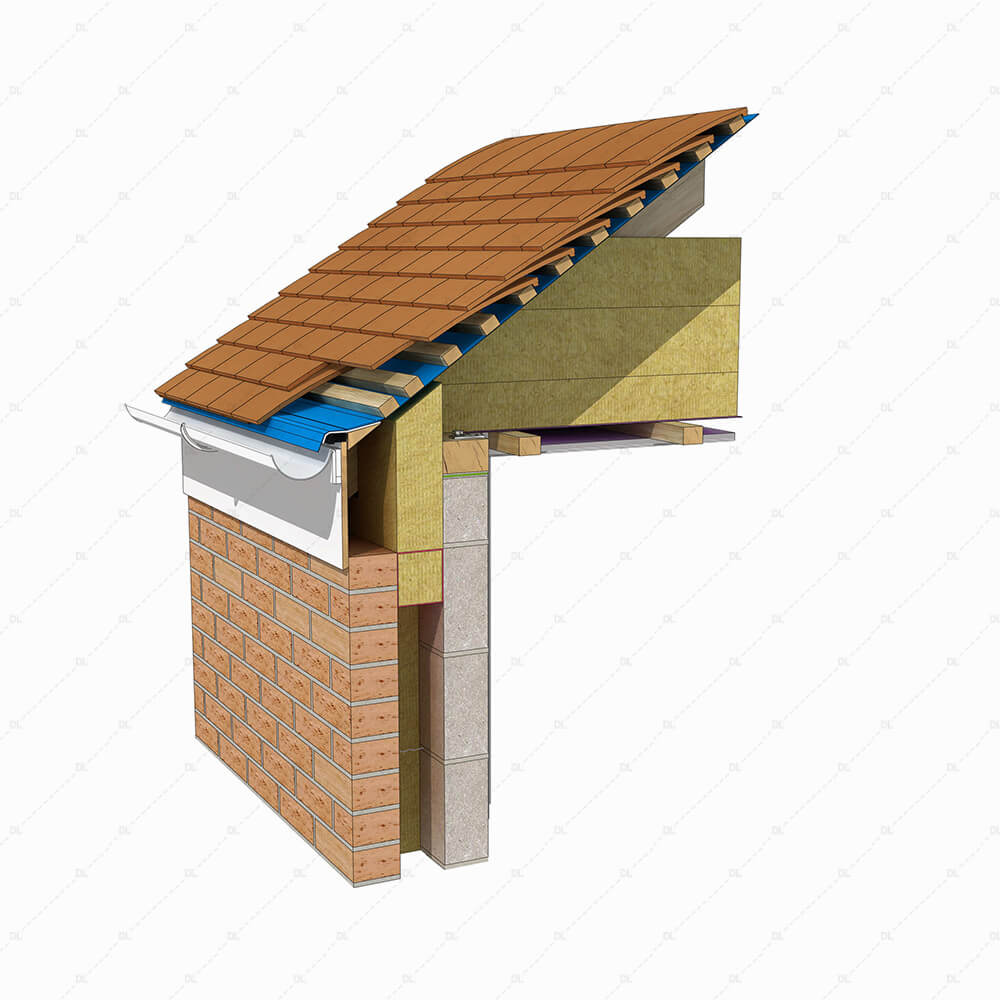

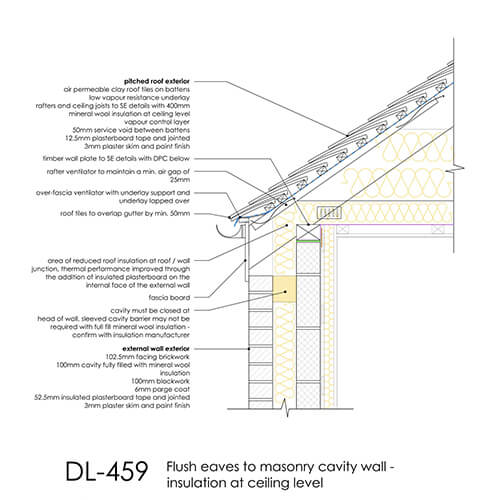

DL459 Flush eaves to masonry cavity wall
DL459 – Flush Eaves to Masonry Cavity Wall – Insulation at Ceiling Level - Image 2

DL460 – Flush Eaves to Masonry Cavity Wall – Bobtail Truss With Insulation at Ceiling Level

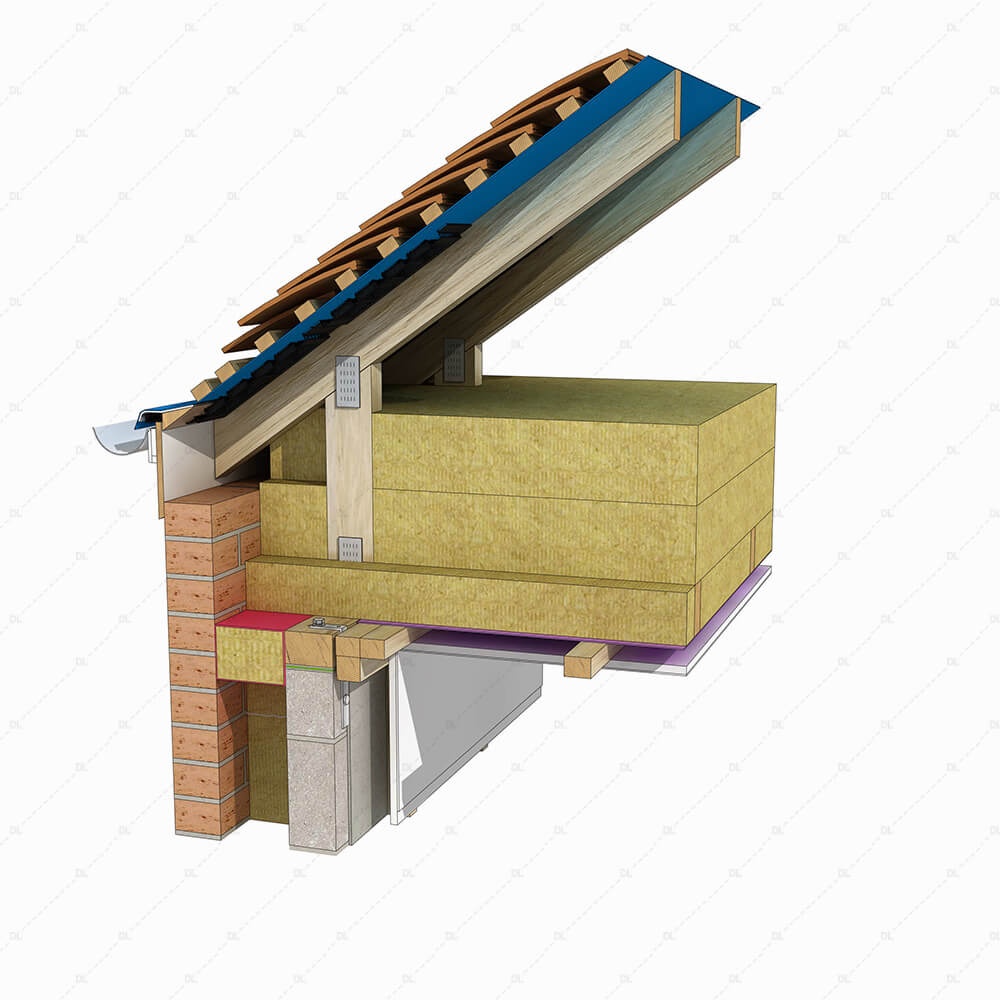

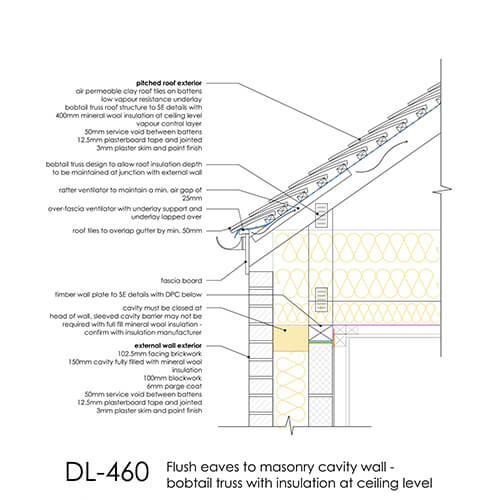

DL460 Flush eaves to masonry cavity wall - bobtail truss
DL460 Flush eaves to masonry cavity wall - bobtail truss

DL461 – Corbelled Eaves to Masonry Cavity Wall – Bobtail Truss With Insulation at Ceiling Level

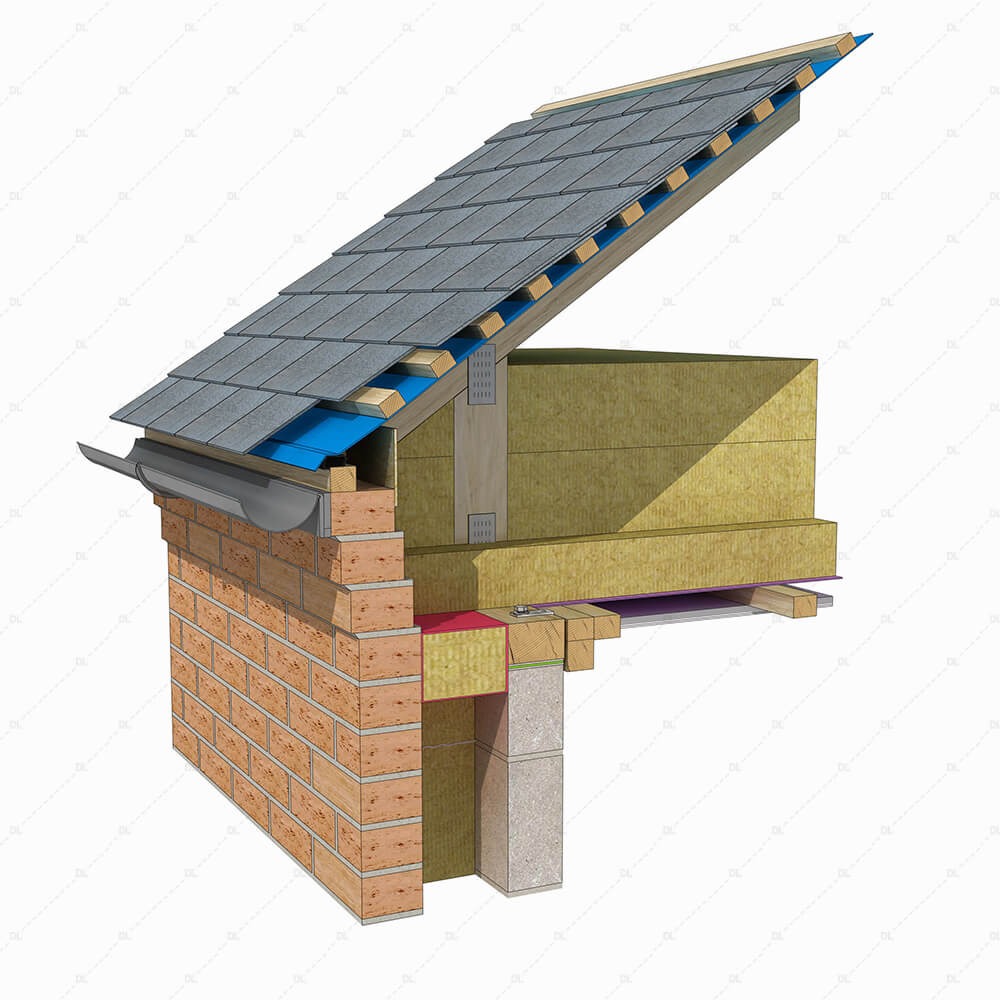

DL461 Corbelled eaves to masonry cavity wall - bobtail truss
DL461 Corbelled eaves to masonry cavity wall - bobtail truss

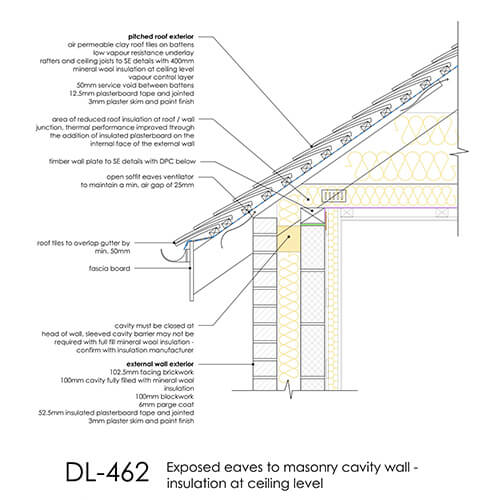

DL462 – Exposed Eaves to Masonry Cavity Wall – Insulation at Ceiling Level

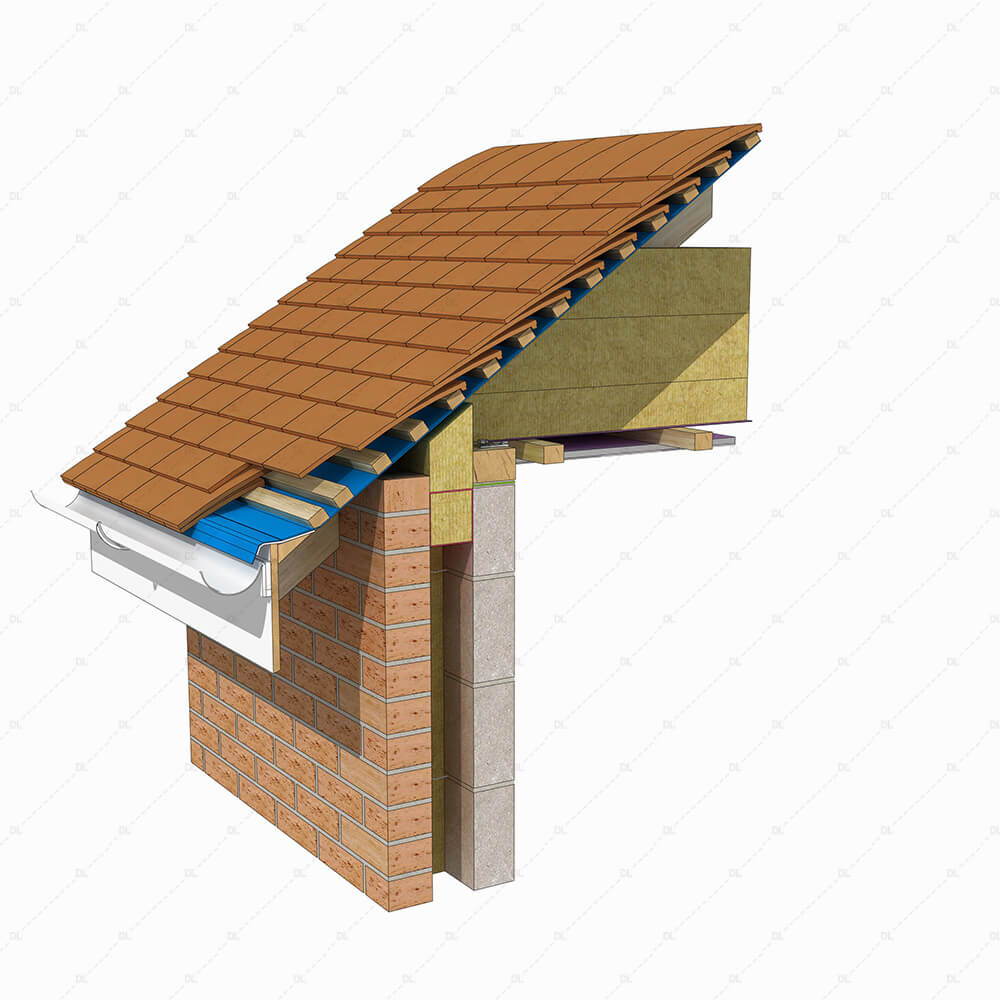

DL462 Exposed eaves to masonry cavity wall
DL462 Exposed eaves to masonry cavity wall

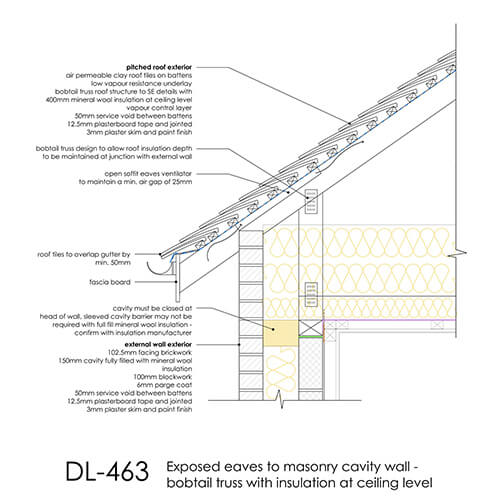

DL463 – Exposed Eaves to Masonry Cavity Wall – Bobtail Truss With Insulation at Ceiling Level

DL463 Exposed eaves to masonry cavity wall - bobtail truss
DL463 Exposed eaves to masonry cavity wall - bobtail truss

DL464 – Timber Clad Timber Frame Eaves Detail – Insulation at Ceiling

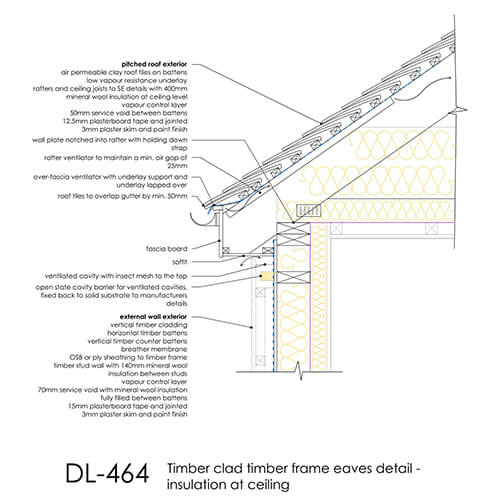

DL464 Timber clad timber frame wall eaves detail
DL464 – Timber Clad Timber Frame Eaves Detail – Insulation at Ceiling - Image 2

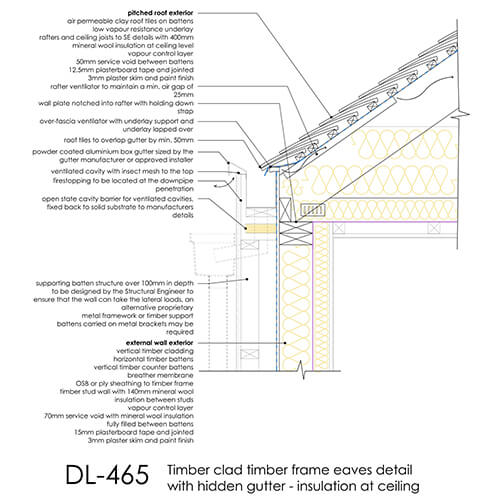

DL465 – Timber Clad Timber Frame Eaves Detail With Hidden Gutter – Insulation at Ceiling

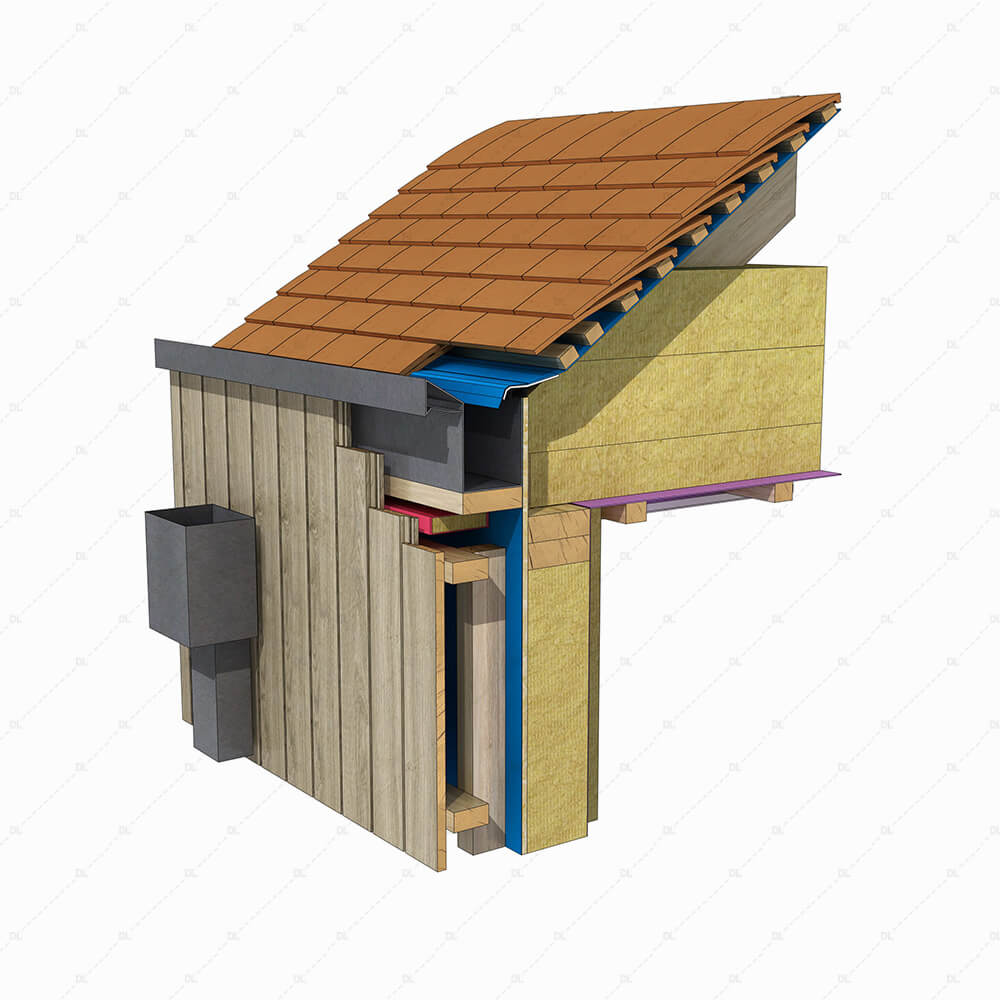

DL465 Timber clad timber frame wall eaves detail - hidden gutter
DL465 Timber clad timber frame wall eaves detail - hidden gutter

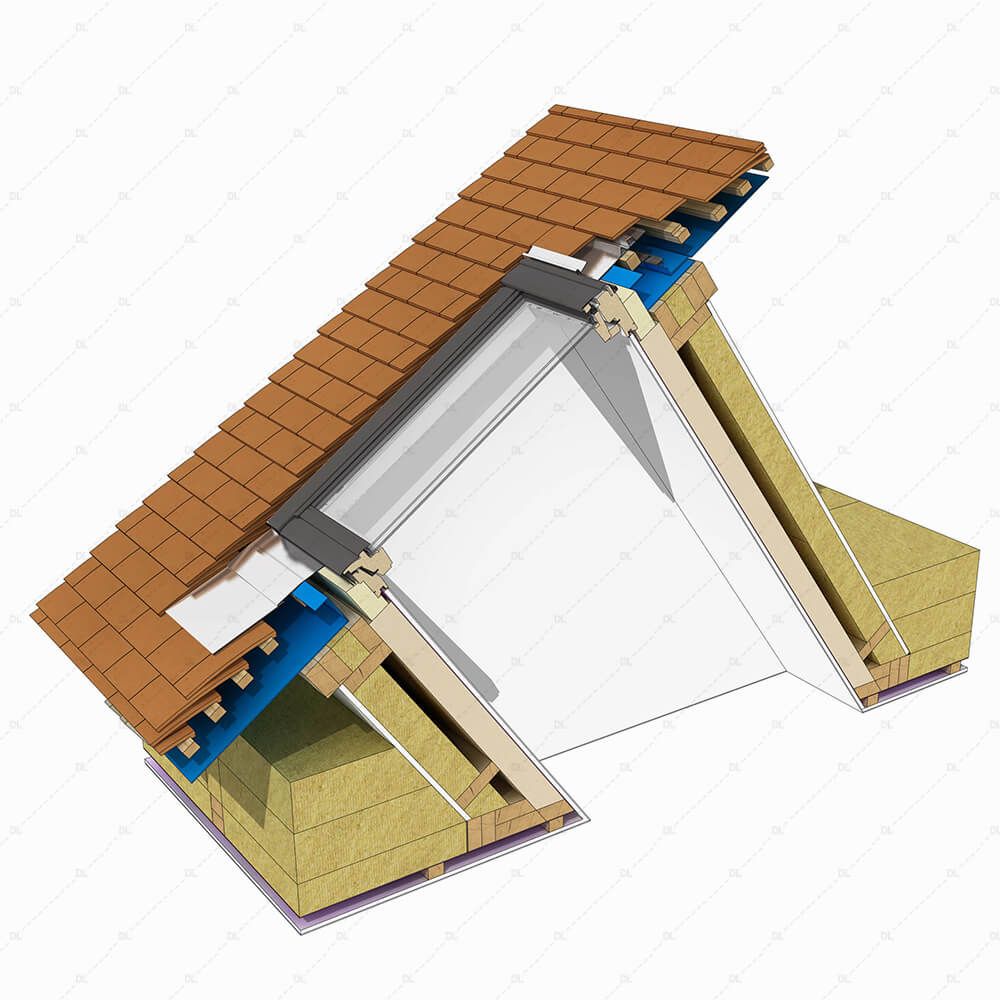

DL466 – Insulated Rooflight Shaft – Pitched Roof With Insulation at Ceiling Level

DL466 Insulated rooflight shaft
DL466 – Insulated Rooflight Shaft – Pitched Roof With Insulation at Ceiling Level - Image 2

DL467 – Raised Loft Boarding System – Pitched Roof With Insulation at Ceiling Level

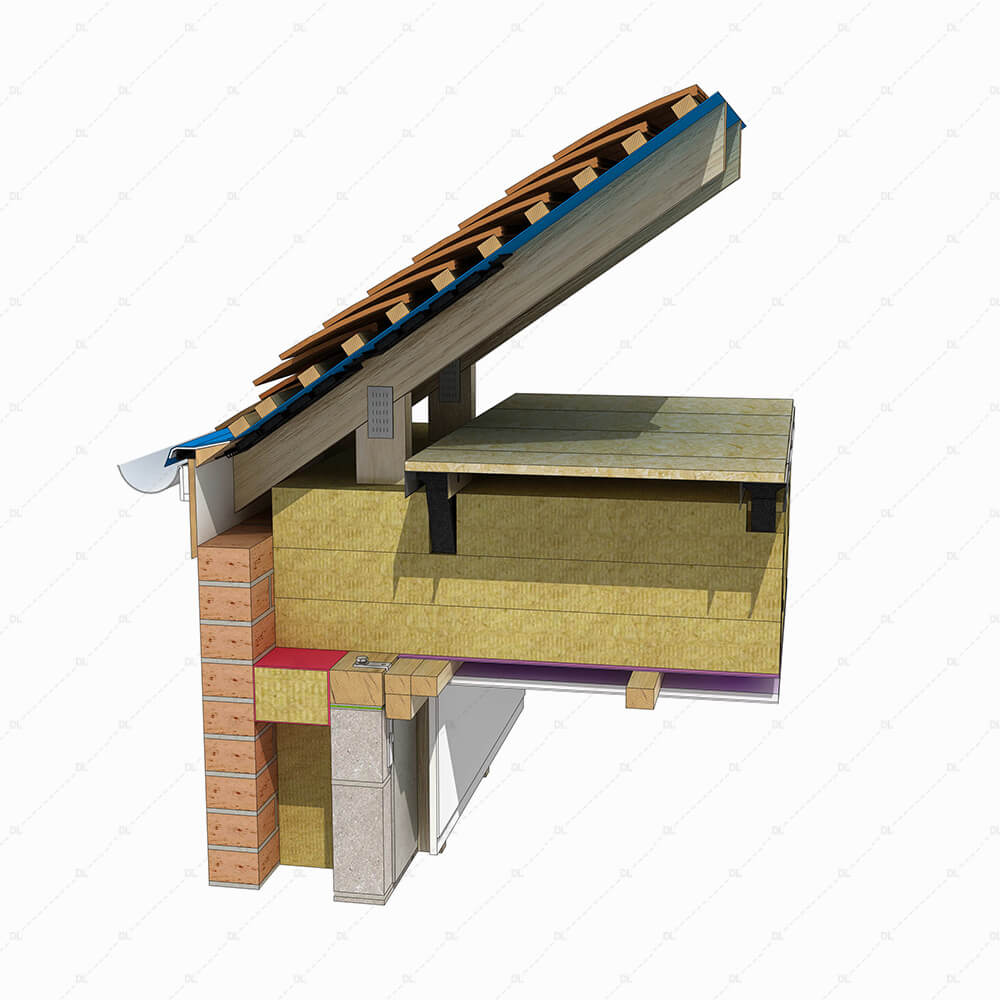

DL467 Raised loft boarding system
DL467 – Raised Loft Boarding System – Pitched Roof With Insulation at Ceiling Level - Image 2

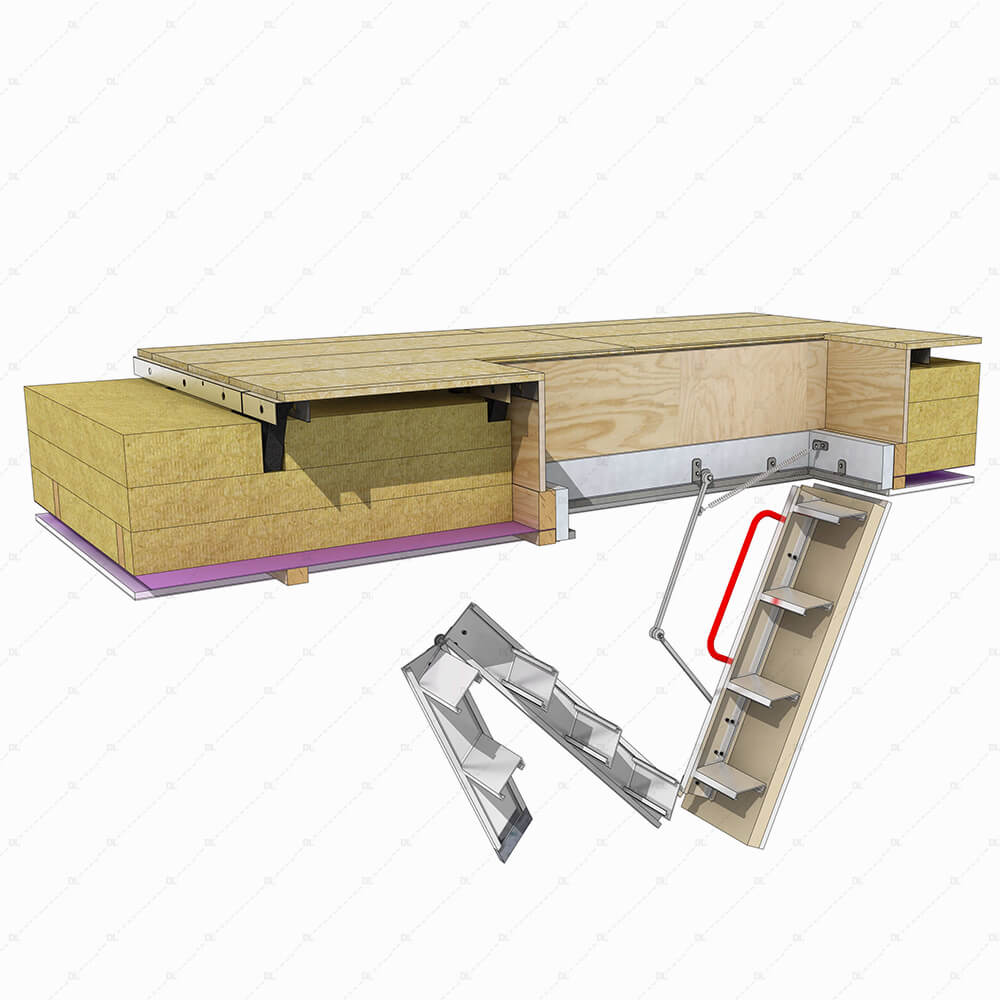

DL468 – Raised Loft Boarding System Loft Hatch & Ladder – Insulation at Ceiling Level

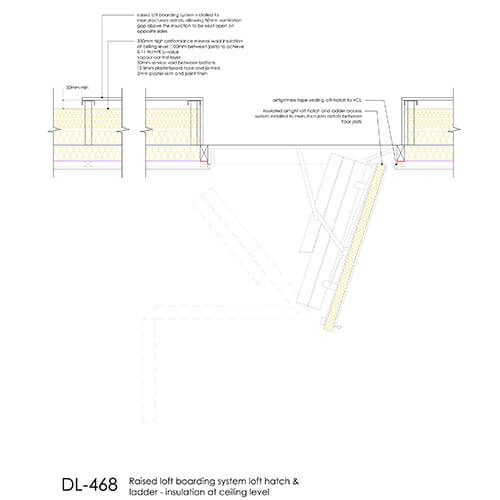

DL468 Raised loft boarding system loft hatch & ladder
DL468 – Raised Loft Boarding System Loft Hatch & Ladder – Insulation at Ceiling Level - Image 2

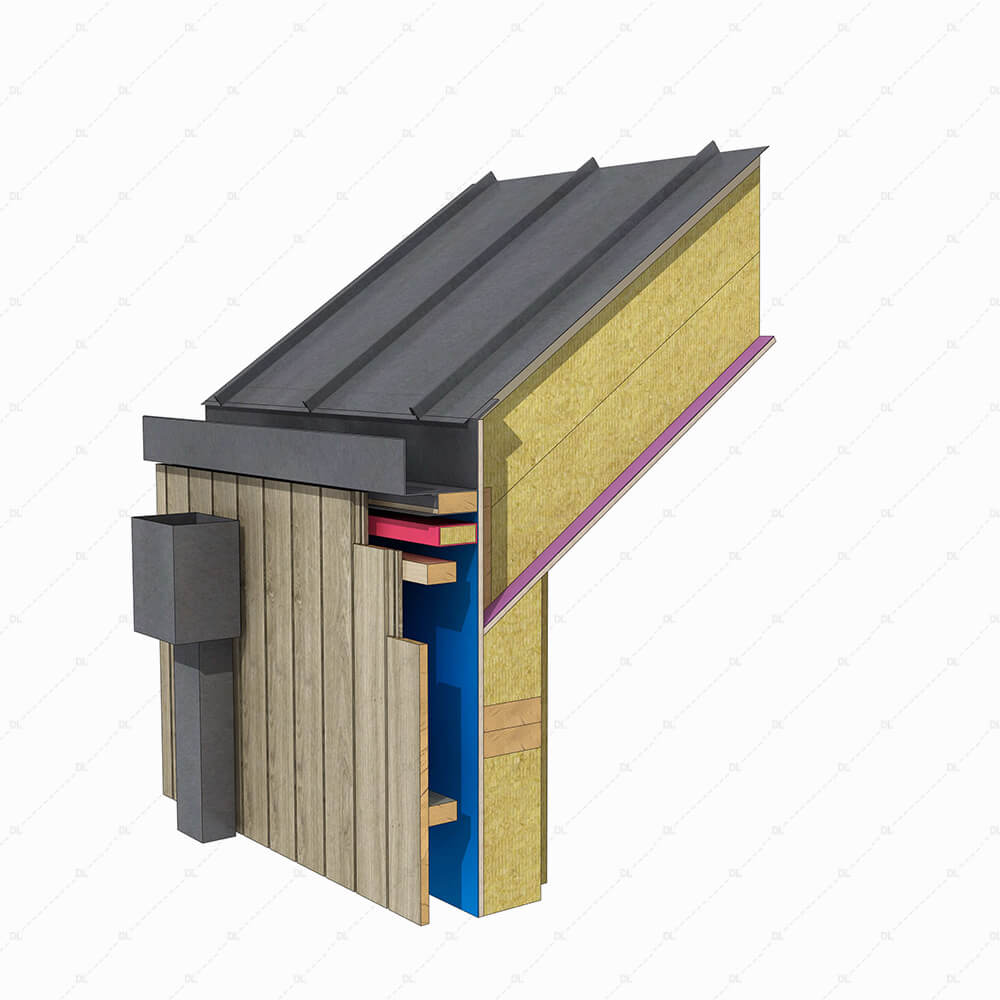

DL469 – Standing Seam Insulated Metal Roof System Eaves Detail With Box Gutter

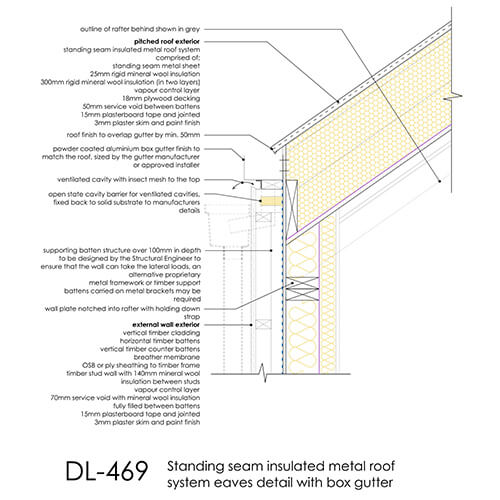

DL469 Insulated metal roof system eaves detail with box gutter
DL469 Insulated metal roof system eaves detail with box gutter

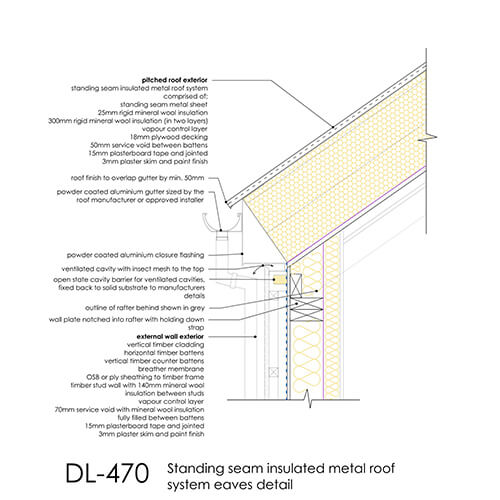

DL470 – Standing Seam Insulated Metal Roof System Eaves Detail

DL470 Insulated metal roof system eaves detail
DL470 Insulated metal roof system eaves detail
